S-Rollers

S-wrap rollers designed for controlled web path, better traction, and improved machine contact geometry.

S-Rollers are engineered for dependable running, application-matched performance, and custom manufacturing support across demanding industrial lines.

Request InquiryDownload Catalogue
S-Wrap GeometryCustom FabricationStable Line Contact

Featured Product

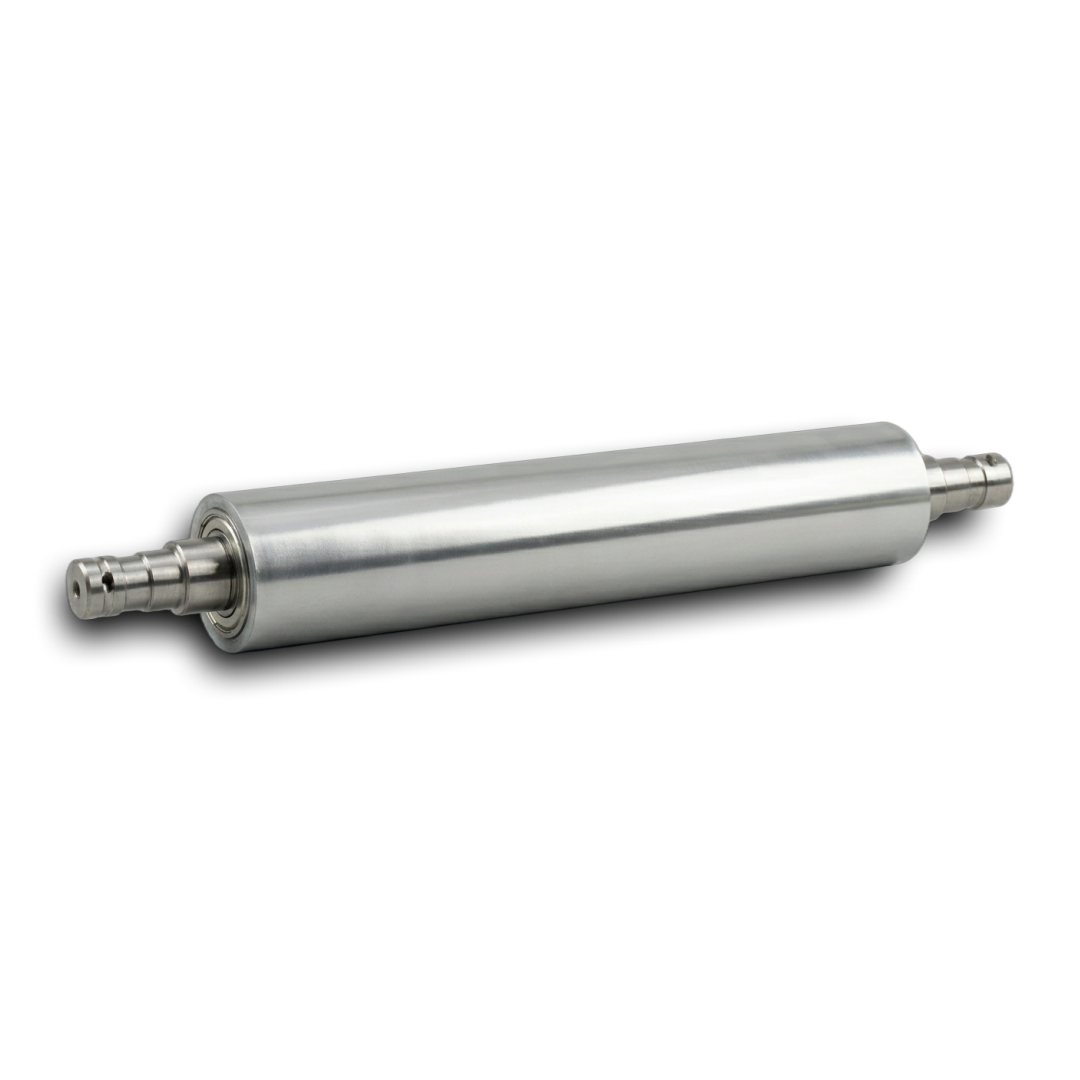

S-Rollers
Web Path Control
S-Rollers
TypeHigh-Grip NBR, Hard Polyurethane (PU), CSM (Hypalon), EPDM
CoreHeavy-Duty Mild Steel, Seamless Cast Iron, Stainless Steel
SurfacePrecision Ground, Matt (to maximize friction and prevent slip), or specifically Grooved
UsePath & Wrap Control
Compound Selection Guide

Common Applications for S-Rollers (S-Wrap Tension Rollers)

Each compound is matched to your application, chemical environment, and operating conditions.

Tension Isolation (S-Wrap Configuration)

These rollers are typically used in pairs where the web material wraps around them in an "S" shape. This creates massive surface contact, allowing the rollers to isolate and control tension between different sections of a machine without the material slipping.

High-Grip Polyurethane (PU) & NBR

The rubber compounds used must provide exceptional grip and extreme abrasion resistance. Hard PU and high-durometer NBR are the standard choices to pull heavy loads without wearing down prematurely.

Drawing and Pulling

Heavily utilized in tape plants, extrusion lines, and metal coil processing where raw materials need to be stretched or pulled continuously at high speeds under massive mechanical strain.

TECHNICAL SPECIFICATIONS

Hardness Range65 to 95 Shore A (High durometer required for maximum grip and load)
Core MaterialsHeavy-Duty Mild Steel, Seamless Cast Iron, Stainless Steel
Rubber CompoundHigh-Grip NBR, Hard Polyurethane (PU), CSM (Hypalon), EPDM
Operating TemperatureUp to 120°C (Standard industrial drawing range)
Surface FinishingPrecision Ground, Matt (to maximize friction and prevent slip), or specifically Grooved
Covering Thickness10 to 15 mm per side
Color RangeBlack (NBR/CSM), Amber/Yellow (PU), Custom based on industry
Key PropertiesSlip-free web drawing, maximum surface friction (wrap angle), high-tension isolation, heavy-duty dynamic balance

KEY FEATURES

  • ✔Slip-free web drawing with maximum surface friction grip.
  • ✔High-tension isolation between machine sections via S-wrap configuration.
  • ✔Heavy-duty dynamic balance for high-speed continuous drawing operations.
  • ✔Precision ground and matt surfaces to maximize friction and prevent slip.

KEY BENEFITS

  • ★Maintains precise tension control for consistent product dimensions.
  • ★Prevents material slippage in high-speed tape and extrusion lines.
  • ★Handles heavy mechanical strain in continuous drawing operations.
